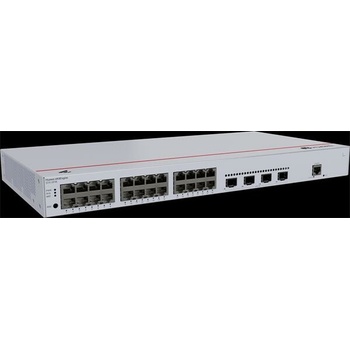

Huawei S310-24T4X

24*10/100/1000BASE-T portov, 4*10GE SFP+ porty, vybudované AC power Based on the next-generation high-performance hardvér a softvér platform, Huawei eKitEngine S310 série switches stand out with features iStack), flexibilné siete Ethernet, a diversified bezpečnostné riadenie. In addition, eKitEngine S310 série switches support Layer 3 routing protocol, delivering higher performance and more powerful service processing capabilities. Tieto tvoria ich ideálny pre rôzne aplikácie scenarios, such as kempingový priestor prístup a gigabit na desktop. Switching capacity 128 Gbps Packet forwarding 95 Mpps Fixed port 24 x 10/100/1000BASE-T portov, 4 x 10GE SFP+ porty Chassis dimensions (H x W x D) 43.6 mm x 442 mm x 220 mm configuration (including packaging materials) 3.44 kg Power module typu Built-in AC power module Rated voltage 100 V to 240 V AC, 50/60 Hz Maximum power consumption 35.04 W Input voltage range [V] ƒ AC input: 90 V AC to 29 V AC, 45 Hz to 65 Hz Noise ƒ Sound power at normal temperature: 47 dB (A) ƒ Sound power at high temperature: 51 dB (A) ƒ Sound pressure at normal temperature: 35 dB (A) First supported version V600R023 fixed device Y Rozmery bez balíkov (H x W x D) [mm(in.)] Základné dimensiony (exkluzívne časti preťažené z bodov): 43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.4 in. x 8.66 in.) Maximálne dimensiony (dĺžka je distancia z portov na prednom paneli na časti pretrudingu z rearového panelu): 43.6 mm x 442.0 mm x 227.0 mm (1.72 in. x 17.4 in. x 8.94 in.) Rozmery s balením (H x W x D) [mm(in.)] 90.0 mm x 550.0 mm x 360.0 mm (3.54 in. x 21.65 in. x 14.17 in.) Chassis height [U] 1 Installation typ Rack mounting,Desk mounting,Wall mounting Štruktúra materiálu Metal Weight with packaging [kg(lb)] 2.32 (5.11) Weight with packaging [kg(lb)] 3.44 (7.58) Typická power consumption [W] 27.27 Typical he /hour] 93.05 Maximum power consumption [W] 35.04 Maximum heat dissipation [BTU/hour] 119.56 Static power consumption [W] 19.00 100% power consumption [W] 27.27 MTBF [year] 70.75 at normal temperature (acoustic power) [dB(A)] 47 Noise at high temperature (acoustic power) [dB(A)] 51 Noise at normal temperature (acoustic pressure) [dB(A)] 35 Číslo karty slotov 0 power slots 0 Počet fanúšikov modulov 1 Maximum number of physical ports on entire device 28 Maximum number of 100GE ports 0 Maximum number of 40GE ports 0 Maximum number of 25GE ports 0 Maximum num 0 um number of 2.5GE portov 0 Maximum number of GE ports 28 Maximum number of FE ports 24 Uplink ports 4 x 10GE SFP+ ports Downlink ports 24 x 10/100/1000BASE-T porty Dedicated stack port Not supported teplota [°C(°F)] -5°C až +50°C (23°F až 122°F) pri 0-1800 m (0-5905.44 ft.) Restriction on operating temperature variation rate [ °C(°F)] Kým je 1800 – 5000 m (5906 – 16404 ft.), vysoké prevádzkové temperatúry redukujú na 1°C (1.8°F), every time the altitude increases by 220 m (722 ft.). . Devices cannot start pri temperature je nízky 0°C (32°F). Storage temperature [°C(°F)] -40°C do +70°C (-40°F do +158°F) Long-term operating relatívnej humidity [RH] 5% RH až 95% RH (non-condensing ) Long-term operating altitude [m(ft.)] 0-5000 m (0-16404 ft.) Storage altitude [m(ft.)] 0-5000 m (0-16404 ft.) Power supply mode AC built- in Rated input voltage [V] AC input: 100 – 240 V AC; 50/60 Hz Input voltage range [V] AC input: 90 V AC to 264 V AC; 45 Hz to 65 Hz Maximum vstupného výstupu [A] 0.8 A CPU 1.1 GHz, 2 cores Memory 2 GB Flash memory Physical space: 1 GB Console port RJ45 Supported RTC Not supported RPS input Not supported Complete device sleeping Not supported Service port surge protection [kV] Common mode: ±7 kV Power supply surge protection [kV] Differential mode: ±6 kV; spoločný režim: ±6 kV Ingress protection level (dustproof/waterproof) IP20 Typy fanúšikov Built-in Heat dissipation mode Air cooling for heat dissipation, intelligent fan speed adjustment Airflow direction Certification EMC certification Safety certification Manufacturing certification
