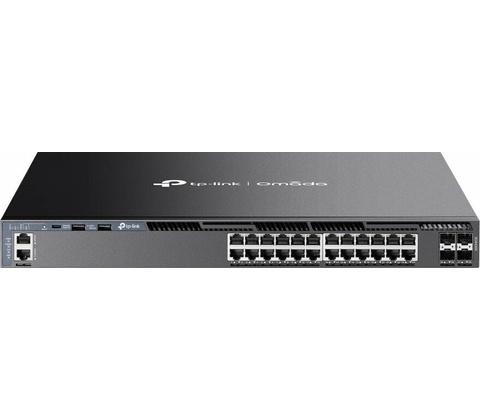

SG6428X
Omada 24portový gigabitový stohovateľný spravovaný switch L3 so 4 slotmi 10G
Funkcia
- 24× gigabitových portov RJ45 a 4× 10 Gb/s slotov SFP+
- Prepínacia kapacita 128 Gb/s na jednotku
- Fyzické stohovanie pre integrovanú redundanciu a výkonnosť
- Funkcia L3: RIP, OSPF, ECMP, VRRP, PIM-DM, DHCP Server/Relay
- Stratégia zabezpečenia: ACL, zabezpečenie portov, DoS Defend, 802.1X
- Vysoká dostupnosť vďaka dvom interným pevným zdrojom napájania, VRRP a ERPS
- Centralizovaná správa cloudu prostredníctvom radiča Omada SDN
- Samostatná správa cez web, CLI, SNMP a RMON
Špecifikácia
Hardvér
Interface
- 24× 10/100/1000 Mbps RJ45 Ports
- 4× 10G SFP+ Slots
- 2× USB 2.0 Ports
- 1× RJ45 Console Port
- 1× USB Type-C Console Port
- 1× RJ45 Management Port
Fan Quantity *Four Internal Fixed Fans
Power Supply *Two Internal Fixed Power Supply Modules (100 – 240 VAC, 50/60 Hz)
Max. Power Consumption *28.4 W (220 V/50 Hz)
Dimensions ( W x D x H ) *440 × 380 × 44 mm
Mounting *Rack Mountable
Max Heat Dissipation *96.91 BTU/hr (220 V/50 Hz)
Výkon
Switching Capacity *128 Gbps per Unit
Stacking
- Stacking Number: 8
- Stacking Port: 10G SFP+ Slot.
- Stack Bandwidth: Up to 80 Gbps (4 stack ports)
Packet Forwarding Rate *95.2 Mpps
MAC Address Table *32 K
Packet Buffer Memory *3 MB
Jumbo Frame *9 KB
Softvér
Quality of Service -Class of Service
- 8 Queues of Priority
- Port Priority
- IEEE 802.1p Priority
- DSCP Priority
- Queue Min-Bandwidth
- Schedule Mode (SP, WRR, SP+WRR)
-Bandwidth Control
- Rate Limit
- Storm Control
- Voice VLAN
- User-Defined OUI
- Smoother Performance
- Action for Flows
*QoS remark (802.1P Remark, DSCP Remark)
L3 Features -IP Interfaces: *IPv4: Max 256, IPv6: Max 256 -Static Routing *Max 1,024, IPv6: Max 512
- Hosť Route Table: Max 6,100 entries
- RIP: Version v1/v2, Max 8,190
- OSPF: Version v2/v3; v2: Max 8,190, v3: Max 4,097
- VRRP: Version v2/v3, Max 64 groups
- ECMP: 256 entries, max. 32 ECMP Nexthops per Destination
- Static ARP: 512 static entries
- Dynamic ARP: 7,680 dynamic entries
- Proxy ARP
- DHCP Server:
- Max 8K IP Pools
- Max 1,000 Manual Binding Entries
-DHCP Relay:
- Relayed Interface
- Relayed VLAN
L2 a L2+ Features
- Link Aggregation
- Spanning Tree Protocol
- Port-based a VLAN-based Loopback Detection
- 802.3x Flow Control
- Supports 2,048 IGMP groups
- ERPS
- Mirroring
- RSPAN
- MAC Address Table
- PIM-DM (IPv4)
- Multicast
- IGMP Snooping
- MLD Snooping
- L2 Multicast Table
- Fast Leave
- Multicast VLAN Registration (MVR)
- Static Multicast IP
- Multicast Filtering
Advanced Features
- Automatic Device Discovery
- Batch Configuration
- Batch Firmware Upgrading
- Intelligent Network Monitoring
- Abnormal Event Warnings
- Unified Configuration
- Reboot Schedule
ISP Features
- 802.3ah Ethernet Link OAM
- L2PT (Layer 2 Protocol Tunneling)
- Device Link Detect Protocol (DLDP)
- DDM
- sFlow
- PPPoE ID Insertion
VLAN
- Max 4K VLAN Group (802.1q VLAN)
- 802.1Q Tagged VLAN
- MAC VLAN Entries: 200
- Multicast VLAN
- Management VLAN
- VLAN VPN (QinQ): Max 256 entries
- GVRP
- Protocol VLAN: Protocol Template 16, Protocol VLAN 12 entries
- VLAN VPN
- Voice VLAN
- Private VLAN
Security
- Port Isolation
- CPU-Deffend
- ARP Inspection (Dynamic ARP Inspection)
- DoS Defend
- IP-MAC-Port Binding
- 1,024 Entries
- DHCP Snooping
- ARP Inspection
- IPv4 Source Guard
-IPv6-MAC
- Port Binding
- 1,024 Entries
- DHCPv6 Snooping
- ND Detection
- ND Snooping
- IPv6 Source Guard
- DHCP Filter
- Static/Dynamic Port Security
*Up to 64 MAC addresses per port -Broadcast/Multicast/Unknown-unicast Storm Control *kbps/ratio control mode -802.1X
- Port base authentication
- Mac base authentication
- VLAN Assignment
- MAB
- Guest VLAN
- RADIUS authentication and accountability support
- AAA (including TACACS+)
- Secure web management through HTTPS with SSLv3/TLS 1.2
- Secure Command Line Interface (CLI) management with SSHv2
- IP/Port/MAC-based access control
Management
Management Features
- Web-based GUI
- Command Line Interface (CLI) cez console port, telnet
- SNMPv1/v2c/v3
- Trap/Inform
- RMON (1, 2, 3, 9 skupiny)
- SDM Template
- DHCP/BOOTP Client
- 802.1ab LLDP/LLDP-MED
- DHCP Auto Install
- Dual Image, Dual Configuration
- CPU Monitoring
- Cable Diagnostics
- Password Recovery
- SNTP
- System Log
- EEE
