TP-LINK SX6632YF

SX6632YF

Omada 26portový stohovateľný managovaný agregačný switch L3 10G so 6 slotmi 25G 26× 10G slotov SFP+ a 6× 25G slotov SFP28

Prepínacia kapacita 820 Gb/s

Fyzické stohovanie pre vstavanú redundanciu a výkonnosť

• Funkcia L3: RIP, OSPF, ECMP, VRRP, PIM-DM, DHCP Server/Relay
• Stratégia zabezpečenia: ACL, zabezpečenie portov, DoS Defend, 802.1X

Vysoká dostupnosť vďaka dvom napájacím zdrojom vymeniteľným počas prevádzky*, VRRP a ERPS

Centralizovaná správa cloudu prostredníctvom kontroléra Omada SDN

Samostatná správa cez web, CLI, SNMP a RMON

HARDWARE FEATURES

Interface • 6× 10/25G SFP28 Slots

• 26× 1/10G SFP+ Slots
• 2× USB 3.0 Ports
• 1× RJ45 Console Port
• 1× USB Type C Console Port
• 1× RJ45 Management Port

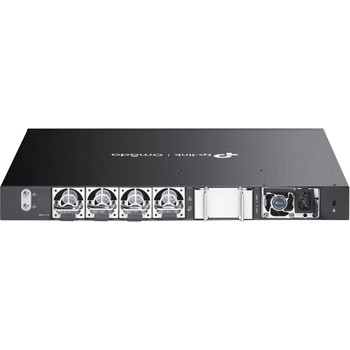

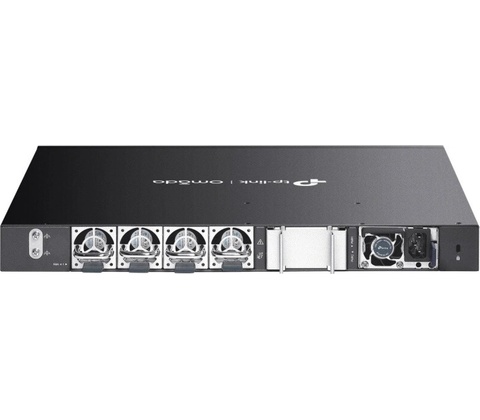

Fan Quantity Four field-replaceable and hot-swappable fans (N+1 redundant)

Physical Security Lock ?

Power Supply Two field-replaceable and hot-swappable redundant power supplies (100–240 VAC, 50/60 Hz) *Ships with one PSM550-AC module by default, and another field-replaceable redundant power supply requires a separate purchase.

Power Consumption 86.7 W (110 V/60 Hz)

Dimensions ( W x D x H ) 17.3 × 15.0 × 1.7 in (440 × 380 × 44 mm)

Mounting Rack Mountable

Max Heat Dissipation 295.85 BTU/hr (110 V/60 Hz)

PERFORMANCE

Switching Capacity 820 Gbps

Stacking • Stacking Number: 8

• Stacking Port: 25G SFP28
• Stack Bandwidth: Up to 300 Gbps (6 stack ports)

Packet Forwarding Rate 610.1 Mpps

MAC Address Table 128 K

Packet Buffer Memory 8 MB

Jumbo Frame 9 KB

SOFTWARE FEATURES

Quality of Service • Class of Service

• 8 Queues of Priority
• Port Priority
• IEEE 802.1p Priority
• DSCP Priority
• Queue Min-Bandwidth
• Schedule Mode (SP, WRR, SP+WRR)

• Bandwidth Control

• Rate Limit
• Strom Control

• User-Defined OUI
• Smoother Performance
• Action for Flows

- QoS remark (802.1P Remark, DSCP Remark)

L3 Features • IP Interfaces: - IPv4: Max 256, IPv6: Max 256 • Static Routing - IPv4: Max 2,048, IPv6: Max 1,024

• Host Route Table: Max 15,300 entries
• RIP: Version v1/v2, Max 102,400

- RIPng: Max 51,200 • OSPF: Version v2/v3;

• v2: Max 102,400
• v3: Max 51,200

• VRRP: Version v2/v3, Max 64 groups
• ECMP: 256 entries, max 32 ECMP Nexhops per Destination
• Static ARP

- 1,024 static entries • Dynamic ARP - 24,576 dynamic entries

• Proxy ARP
• DHCP Server:

• Max 8K IP Pools
• Max 1,000 Manual Binding Entries

• DHCP Relay:

• Relayed Interface
• Relayed VLAN

L2 and L2+ Features • Link Aggregation

• Static link aggregation
• 802.3ad LACP
• Up to 8 ports per group
• Up to 120 LAG Groups

• Spanning Tree Protocol

• 802.1d STP
• 802.1w RSTP
• 802.1s MSTP
• Up to 64 MSTI instances (4 at Omada controller mode)
• STP Security: TC Protect, BPDU Filter, BPDU Protect, Root Protect, Loop Protect

• Loopback Detection

• Port based
• VLAN based

• Flow Control - 802.3x Flow Control

• Supports 4,093 IGMP groups
• ERPS: Up to 64 ERPS rings
• Mirroring

• Port Mirroring
• CPU Mirroring
• One-to-One
• Many-to-One
• Tx/Rx/Both

• RSPAN
• Mac Address

• MAC Address Table
• Static MAC: Max 128 entries
• Dynamic MAC Address: Max 128K entries
• Filtering MAC Address: Max 128 entries

• Virtual MAC (only supported in standalone mode)

Advanced Features • Automatic Device Discovery†

• Batch Configuration†
• Batch Firmware Upgrading†
• Intelligent Network Monitoring†
• Abnormal Event Warnings†
• Unified Configuration†
• Reboot Schedule†

ISP Features:

• 802.3ah Ethernet Link OAM
• L2PT (Layer 2 Protocol Tunneling)
• Device Link Detect Protocol (DLDP)
• DDM
• sFlow
• PPPoE ID Insertion

VLAN • VLAN Group (802.1q VLAN) - Max 4K VLAN Groups

• 802.1Q Tagged VLAN
• MAC VLAN entries: 200
• Multicast VLAN
• Management VLAN
• VLAN VPN (QinQ): Max 256 entries
• GVRP
• Protocol VLAN: Protocol Template 16, Protocol VLAN 12 entries
• VLAN VPN

• VLAN Mapping
• VLAN Replace

• Voice VLAN
• Private VLAN

Security • Port Isolation

• CPU-Deffend
• ARP Inspection (Dynamic ARP Inspection)
• DoS Defend
• IP-MAC-Port Binding

• 1,024 Entries
• DHCP Snooping
• ARP Inspection
• IPv4 Source Guard

• IPv6-MAC

• Port Binding
• 1,024 Entries
• DHCPv6 Snooping
• ND Detection
• ND Snooping
• IPv6 Source Guard

• DHCP Filter
• Static/Dynamic Port Security

- Up to 64 MAC addresses per port • Broadcast/Multicast/Unknown-unicast Storm Control - kbps/ratio control mode • 802.1X

• Port base authentication
• Mac base authentication
• VLAN Assignment
• MAB
• Guest VLAN
• Support RADIUS authentication and accountability

• AAA (including TACACS+)
• Secure web management through HTTPS with SSLv3/TLS 1.2
• Secure Command Line Interface (CLI) management with SSHv2
• IP/Port/MAC based access control

MANAGEMENT

Omada App Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.

Centralized Management • Omada Cloud-Based Controller

• Omada Hardware Controller
• Omada Software Controller

Cloud Access Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.

Zero-Touch Provisioning Yes. Requiring the use of Omada Cloud-Based Controller.

Management Features • Web-based GUI

• Command Line Interface (CLI) through console port, telnet
• SNMPv1/v2c/v3

• Trap/Inform
• RMON (1, 2, 3, 9 groups)

• SDM Template
• DHCP/BOOTP Client
• 802.1ab LLDP/LLDP-MED
• DHCP Auto Install
• Dual Image, Dual Configuration
• CPU Monitoring
• Cable Diagnostics
• Password Recovery
• SNTP
• System Log

OTHERS

Package Contents • SX6632YF Switch

• Power Cord
• Quick Installation Guide
• Rackmount Kit
• Rubber Feet

System Requirements Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.

Environment • Operating Temperature:

• 5 °C to 50 °C (23 °F to 122 °F) @ 300 meters
• 5 °C to 45 °C (23 °F to 113 °F) @ 2,000 meters
• 5 °C to 40 °C (23 °F to 104 °F) @ 3,000 meters

• Storage Temperature: -40 °C to 70 ? (-40 ? to 158 ?)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
