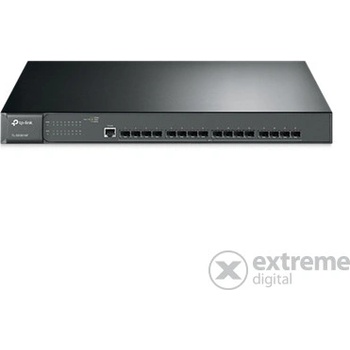

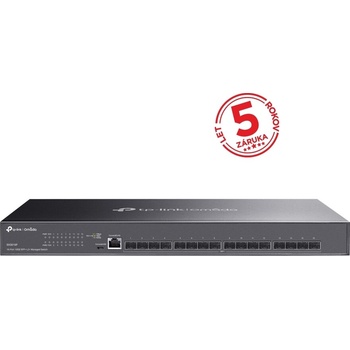

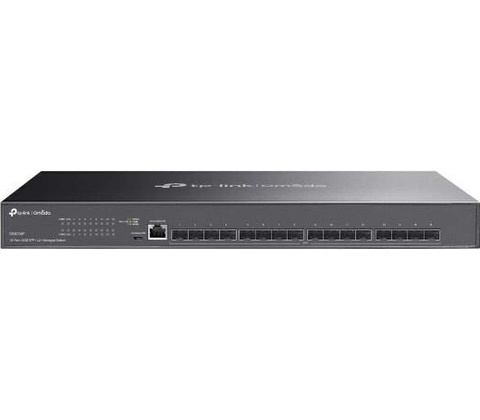

TP-Link TL-SX3016F

TL-SX3016F 16portový 10GE SFP+ L2+ riadený switch JetStream

• 16 slotov 10GE SFP+: Bleskurýchle sloty SFP+ s plnou rýchlosťou 10 Gbit/s ponúka možnosť agregácie širokopásmových pripojení a prepínaciu kapacitu 320 Gbit/s bez blokovania. Podpora 10G SFP+ a 1G SFP modulov.
• Veľké množstvo L2 a L2+ funkcií: Podporuje celý rad L2 a L2+ funkcií vrátane statického smerovania, QoS na podnikovej úrovni, IGMP Snooping a ďalšie.
• Robustná stratégia zabezpečenia: Pomáha chrániť investície do miestnej siete pomocou integrovanej funkcie viazania na IP-MAC-Port, ACL, zabezpečením portov, overovaním 802.1X a ďalšími funkciami.

HARDWARE FEATURES

Interface • 16× 10GE SFP+ Slots

• 1× RJ45 Console Port
• 1× Micro-USB Console Port

Fan Quantity 1

Power Supply 100-240 V AC~50/60 Hz

Dimensions ( W x D x H ) 17.3 × 8.7 × 1.7 in (440 × 220 × 44 mm)

Mounting Rack Mountable

Max Power Consumption 32.74 W (220 V / 50 Hz)

Max Heat Dissipation 111.71 BTU/hr (220 V / 50 Hz)

PERFORMANCE

Switching Capacity 320 Gbps

Packet Forwarding Rate 238.08 Mpps

MAC Address Table 32 K

Packet Buffer Memory 24 Mbit

Jumbo Frame 9 KB

SOFTWARE FEATURES

Quality of Service • 8 priority queues

• 802.1p CoS/DSCP priority
• Queue scheduling

• SP (Strict Priority)
• WRR (Weighted Round Robin)
• SP+WRR

• Bandwidth Control - Port/Flow based Rating Limiting

• Smoother Performance
• Action for Flows

• Mirror (to supported interface)
• Redirect (to supported interface)
• Rate Limit
• QoS Remark

L2 and L2+ Features • Link Aggregation

• static link aggregation
• 802.3ad LACP
• Up to 8 aggregation groups, containing 8 ports per group

• Spanning Tree Protocol

• 802.1d STP
• 802.1w RSTP
• 802.1s MSTP
• STP Security: TC Protect, BPDU Filter, Root Protect

• Loopback Detection

• Port based
• VLAN based

• Flow Control

• 802.3x Flow Control
• HOL Blocking Prevention

• Mirroring

• Port Mirroring
• CPU Mirroring
• One-to-One
• Many-to-One
• Tx/Rx/Both

L2 Multicast • IGMP Snooping

• IGMP v1/v2/v3 Snooping
• Fast Leave
• IGMP Snooping Querier
• IGMP Authentication

• IGMP Authentication
• MLD Snooping

• MLD v1/v2 Snooping
• Fast Leave
• MLD Snooping Querier
• Static Group Config
• Limited IP Multicast

• MVR
• Multicast Filtering: 256 profiles and 16 entries per profile

VLAN • VLAN Group - Max 4K VLAN Groups

• 802.1Q Tagged VLAN
• MAC VLAN: 30 Entries
• Protocol VLAN: Protocol Template 16, Protocol VLAN 16
• Private VLAN
• GVRP
• VLAN VPN (QinQ)

• Port-Based QinQ
• Selective QinQ

• Voice VLAN

Access Control List • Time-based ACL • MAC ACL

• Source MAC
• Destination MAC
• VLAN ID
• User Priority
• Ether Type

• IP ACL

• Source IP
• Destination IP
• Fragment
• IP Protocol
• TCP Flag
• TCP/UDP Port
• DSCP/IP TOS
• User Priority

• Combined ACL
• Packet Content ACL
• IPv6 ACL
• Policy

• Mirroring
• Redirect
• Rate Limit
• QoS Remark

• ACL apply to Port/VLAN

Security • IP-MAC-Port Binding

• 512 Entries
• DHCP Snooping
• ARP Inspection
• IPv4 Source Guard: 100 Entries

• IPv6-MAC-Port Binding

• 512 Entries
• DHCPv6 Snooping
• ND Detection
• IPv6 Source Guard: 100 Entries

• DoS Defend
• Static/Dynamic Port Security

- Up to 64 MAC addresses per port • Broadcast/Multicast/Unicast Storm Control - kbps/ratio control mode • 802.1X

• Port base authentication
• Mac base authentication
• VLAN Assignment
• MAB
• Guest VLAN
• Support Radius authentication andaccountability

• AAA (including TACACS+)
• Port Isolation
• Secure web management through HTTPS with SSLv3/TLS 1.2
• Secure Command Line Interface (CLI) management with SSHv1/SSHv2
• IP/Port/MAC based access control

IPv6 • IPv6 Dual IPv4/IPv6

• Multicast Listener Discovery (MLD) Snooping
• IPv6 ACL
• IPv6 Interface
• Static IPv6 Routing
• IPv6 neighbor discovery (ND)
• Path maximum transmission unit (MTU) discovery
• Internet Control Message Protocol (ICMP) version 6
• TCPv6/UDPv6
• IPv6 applications

• DHCPv6 Client
• Ping6
• Tracert6
• Telnet (v6)
• IPv6 SNMP
• IPv6 SSH
• IPv6 SSL
• Http/Https
• IPv6 TFTP

L3 Features • 16 IPv4/IPv6 Interfaces • Static Routing - 48 static routes • Static ARP - 128 Static Entries

• Proxy ARP
• Gratuitous ARP
• DHCP Server
• DHCP Relay

• DHCP Interface Relay
• DHCP VLAN Relay

• DHCP L2 Relay

Advanced Features • Automatic Device Discovery

• Batch Configuration
• Batch Firmware Upgrading
• Intelligent Network Monitoring
• Abnormal Event Warnings
• Unified Configuration
• Reboot Schedule

MIBs • MIB II (RFC1213)

• Interface MIB (RFC2233)
• Ethernet Interface MIB (RFC1643)
• Bridge MIB (RFC1493)
• P/Q-Bridge MIB (RFC2674)
• RMON MIB (RFC2819)
• RMON2 MIB (RFC2021)
• Radius Accounting Client MIB (RFC2620)
• Radius Authentication Client MIB (RFC2618)
• Remote Ping, Traceroute MIB (RFC2925)
• Support TP-Link private MIB

MANAGEMENT

Omada App Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.

Centralized Management • Omada Cloud-Based Controller

• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller

Cloud Access Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.

Zero-Touch Provisioning Yes. Requiring the use of Omada Cloud-Based Controller.

Management Features • Web-based GUI

• Command Line Interface (CLI) through the console port, telnet
• SNMP v1/v2c/v3

• Trap/Inform
• RMON (1,2,3,9 groups)

• SDM Template
• DHCP/BOOTP Client
• 802.1ab LLDP/LLDP-MED
• DHCP AutoInstall
• Dual Image, Dual Configuration
• CPU Monitoring
• Cable Diagnostics
• EEE
• Password Recovery
• SNTP
• System Log

OTHERS

Certification CE, FCC, RoHS

Package Contents • TL-SX3016F Switch

• 2× Power Cords
• Quick Installation Guide
• Rackmount Kit
• Rubber Feet

System Requirements Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.

Environment • Operating Temperature: 0–45 ? (32–113 ?);

• Storage Temperature: -40–70 ? (-40–158 ?)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing

• Duálne redundantné zdroje napájania: Dva zdroje napájania sa navzájom dopĺňajú a sú tak ideálnou voľbou pre spoľahlivú sieťovú architektúru.
• Centralizovaná cloudová správa: Integrácia s platformou Omada SDN umožňuje cloudový prístup a vzdialenú správu.
• Samostatná správa: Webové rozhranie, CLI (konzolový port, Telnet, SSH), SNMP, RMON a funkcie Dual Image prinášajú pokročilé možnosti správy.
